10-20mL 18mm Screw Thread Headspace ND18

Details

Description

Headspace vials from Aijiren Technology, Inc with high quality and favorable price. Zhejiang Aijiren is a manufacturer of Laboratory consumables. We supply autosampler vials, septa and caps at factory price.

18mm Screw Thread Headspace Vials are often used in Shimadzu, Spectral Physics, Varian, and other autosamplers.

18mm Screw Thread top septa is used PTFE and high-quality silicone rubber or ultra-pure silica as raw materials, the gasket is guaranteed to be non-toxic.

1. A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process

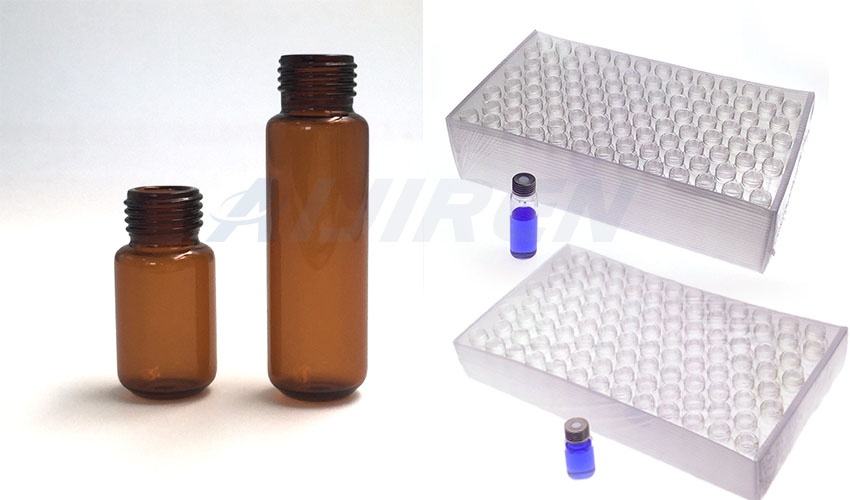

2. 10ml, 20ml clear or Amber precision thread vial

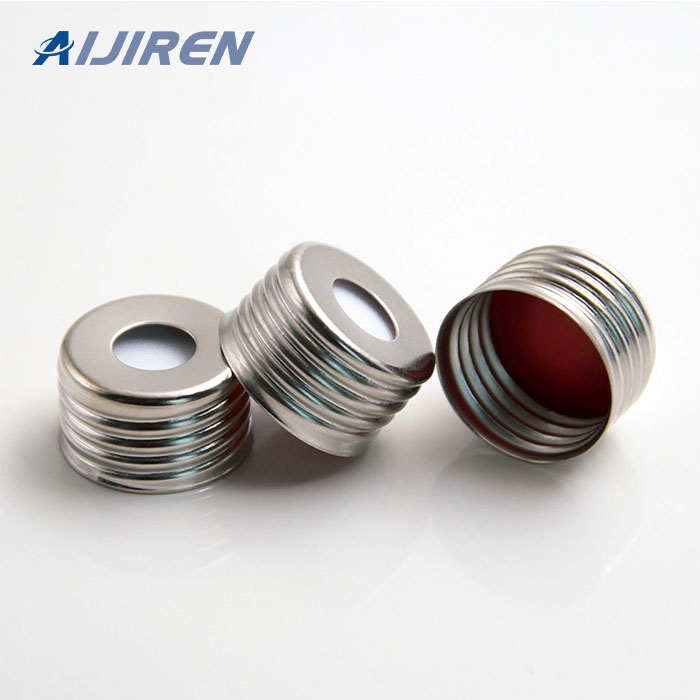

3. Magnetic screw caps 8mm center hole

4. Septa are blue PTFE sample side; White Silicone outside

 Features

1. The precision screw-thread vial always be applied to aijiren, Shimadzu, Tekmar, CTC PAL, Varian, Gerstel, Atas, Thermo Scientific autosamplers.

2. Autosampler vials are produced by high quality raw material which imported from foreign countries. They have the features of excellent high-temperature and corrosion resistance.

3. Caps are made of high quality aluminum precise manufacturing tolerances, well-controlled Manufacturing environment.

4. Septa are produced by high quality material to ensure proper functions The septa are designed for single injection or a long time between injections. Temperature resistance – 60℃ to 200℃.

5. Magnetic precision screw-thread metal cap is combined with the ideas of innovation and time-saving and convenient together.

6. The method of patent to produce chemical inert cap is to integrate the cap and the septa together at the molecular level, which can avoid excessive evaporation and keep the sample bottle proper sealing.

 Technical Paramete

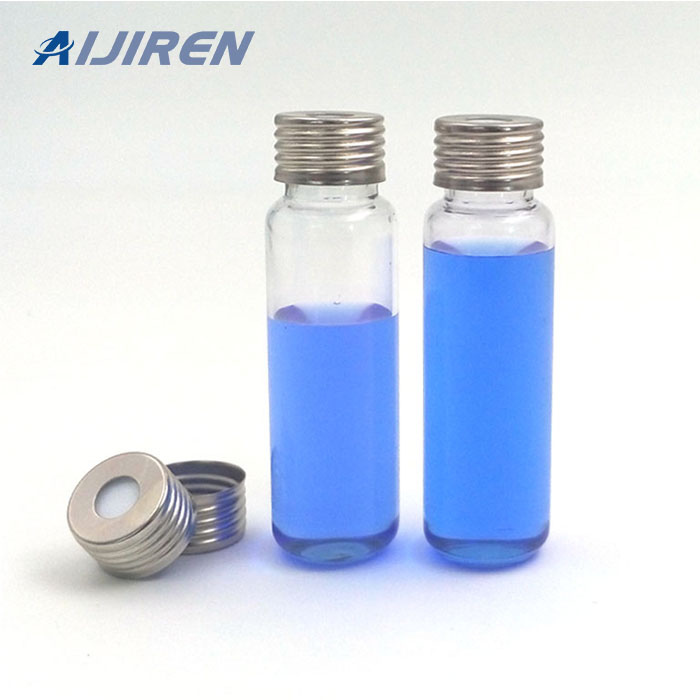

1. 18mm Screw Thread Headspace Vials ND18

Part No.	VA101	VA1035	VA201	VA2035
Description	10mL Clear Precision Screw Headspace Vial, Round Bottom, 22.5*46mm, 5.0 type	10mL Amber Precision Screw Headspace Vial, Round Bottom, 22.5*46mm, 5.0 type	20mL Clear Precision Screw Headspace Vial, Round Bottom, 22.5*75.5mm, 5.0 type	20mL Amber Precision Screw Headspace Vial, Round Bottom, 22.5*75.5mm, 5.0 type

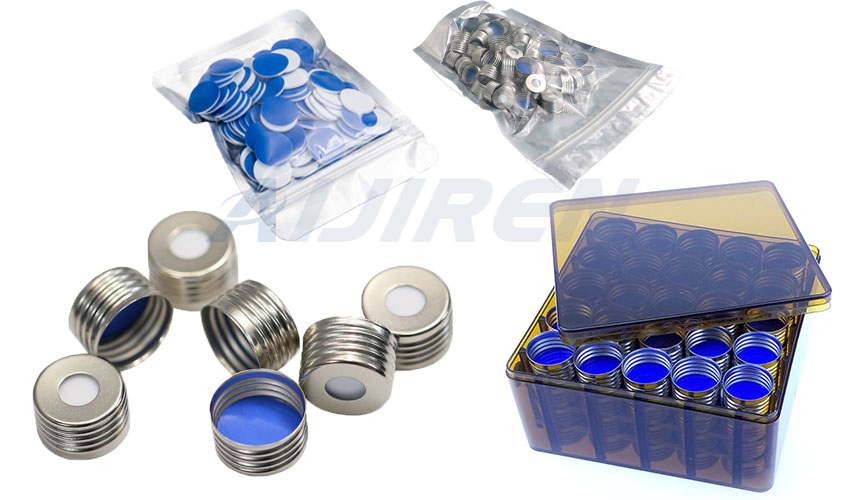

2. 18mm Screw Thread Headspace Caps With Septa

Part No.	SACA001	SACA002-II	SACA003-II	CA001	SA001	SA002-II	SA003-II
Description	Blue PTFE/White Silicone Septa, 13mm Black Screw Polypropylene Cap, 8.5mm Centre Hole	Red PTFE/White Silicone Septa, 18mm Magnetic Precision Screw Metal Cap, 8mm Centre Hole	White PTFE/Blue Transparent Silicone Septa, 18mm Magnetic Precision Screw Metal Cap, 8mm Centre Hole	Magnetic Precision Screw Metal Cap, 8mm Centre Hole Φ18mm	Blue PTFE/White Silicone Septa Φ 17.5*1.5mm	Red PTFE/White Silicone Septa Φ 17.5*1.3mm Easy to puncture NEW TYPE	White PTFE/Blue Transparent Silicone Septa Φ 17.5*1.3mm Easy to puncture NEW TYPE

16mm Test Tubes for Water Analysis

Material: USP Type 1, Class A, 33 Borosilicate Glass
Application: Water analysis
Qty/Pack: 25pcs/pack or 100pcs/pack
Dimensions: 16 x 100mm
Neck Diameter: 16mm
Volume: 12ml
Payment: T/T
MOQ: 1 pack

20-60mL 24-400 Screw Neck Storage Vial ND24

Dimensions: 27.5 x 57mm/27.5 x 75mm/27.5 x 95mm/27.5mm x 140mm
Material: USP Type 1, Class A, 33 Borosilicate Glass
Application: Environmental analysis
Neck Diameter: 24mm
Qty/Pack: 100pcs/pack
Volume: 20-60ml
Payment: T/T
MOQ: 1 pack

8-12mL 15-425 Screw Neck Vial ND15

Material: USP Type 1, Class A, 33 Borosilicate Glass
Dimensions: 16.6 x 60mm/18.5 x 65mm
Application: Environmental analysis
Neck Diameter: 15mm
Qty/Pack: 100pcs/pack
Volume: 8-12ml
Payment: T/T
MOQ: 1 pack

10-20mL 18mm Screw Thread Headspace ND18

Material: USP Type 1, Class A, 33 Borosilicate Glass
Dimensions: 22.5 x 46mm/22.5 x 75mm
Application: GC system
Neck Diameter: 18mm
Qty/Pack: 100pcs/pack
Volume: 10-20ml
Payment: T/T
MOQ: 1 pack

HPLC Syringe Filters

Material: Nylon; Hydrophilic PVDF; Hydrophilic PTFE; Hydrophobic PTFE; PES; MCE; Hydrophilic PP; Cellulose Acetate(CA)
Qty/Pack: 100pcs/pack
Application: Filter
Payment: T/T
MOQ: 1 pack
